Pull Up Pull Down. What is Pull Up and Pull Down resistor , and where can we use it ? electronics electrical Pull-up and pull-down resistors find frequent applications when connecting a switch or other input device to a microcontroller or digital gates They ensure stable logic levels for inputs and outputs, especially in systems where switches, sensors, or open-collector outputs need to maintain consistent high or low states when.

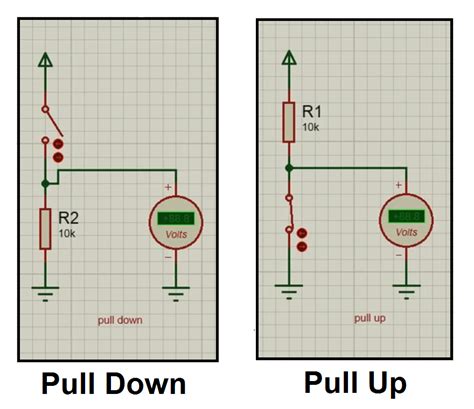

With the switch contacts open, the Pull-down resistor is the only pathway for current And when connected to switches such as pushbuttons, both pull up and pull down resistors can switch states so that a pull up resistor can be bring a pin to a LOW state and a pull down resistor can bring a pin to a HIGH state

Resistencia pull down y pull up todo lo que debes saber Hardware libre

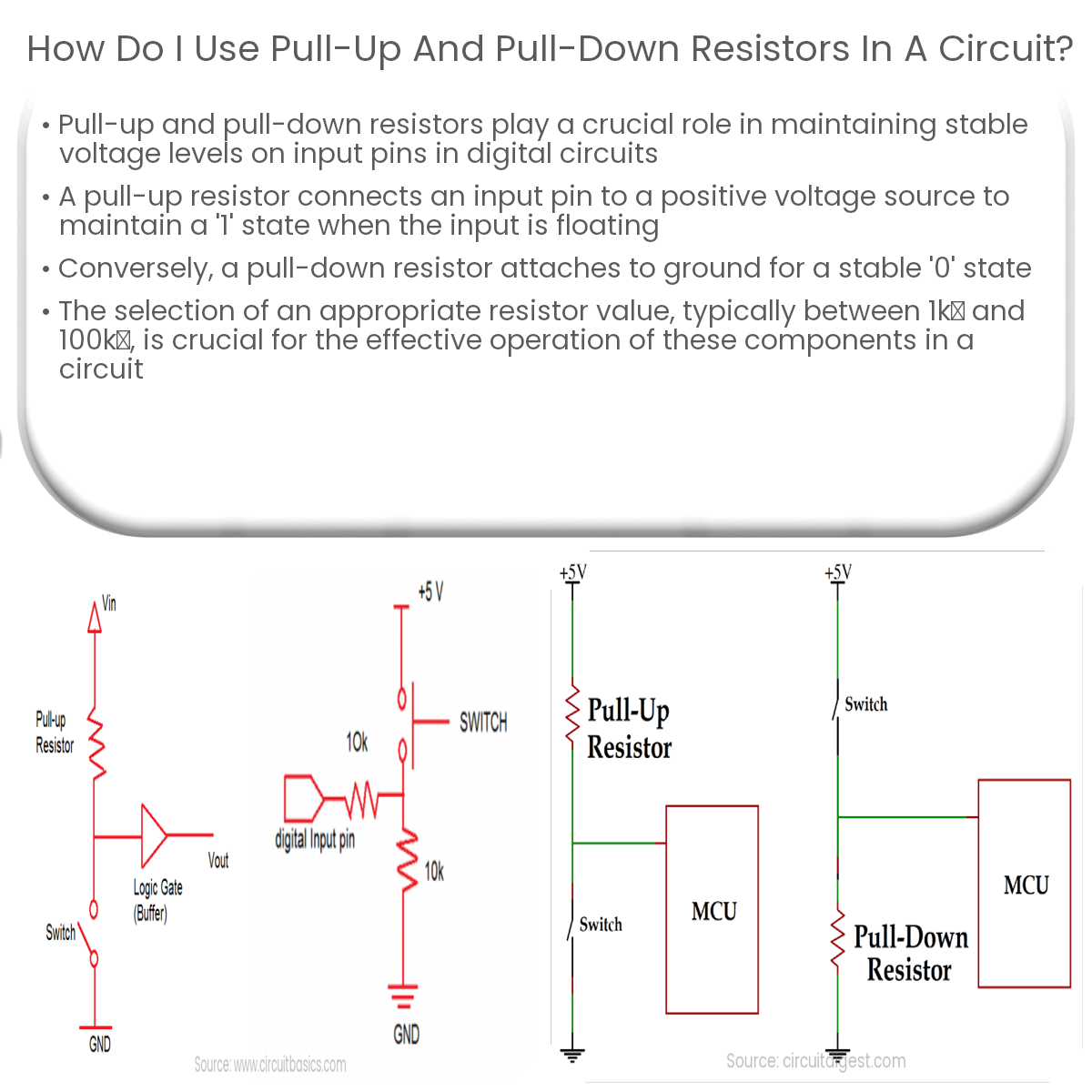

A good rule of thumb for the pull-up resistor value is 1/10 of the MCU's input pin impedance Now, If we consider the same example stated above, where the circuit accepts 1V as the maximum logic Low voltage and could source up to 200uA of current then the Pull-down resistor will be, More about Pull-Up and Pull-Down Resistors And when connected to switches such as pushbuttons, both pull up and pull down resistors can switch states so that a pull up resistor can be bring a pin to a LOW state and a pull down resistor can bring a pin to a HIGH state

Pullup and pulldown resistors on Arduino ElectroSoftCloud. This can be a concern in battery-powered or low-power. The use of 100Ω pull-down resistors are the most common but they can range in resistive value from 50 up to 1k ohms.

Pull up and Pull down Resistor Explained Electronics Microcontroller YouTube. Pull-down resistors are a little more critical because of the low input voltage level, V IL(max) and the higher I IL current Based on the two conditions above, for pull-up resistors, you need to use a resistor that is at least 10 times smaller than the value of the input pin impedance
